GT6 rear wing preparation

After pulling out some dubious repairs from the rear wheel arch I worked out that the left hand rear wing had already had three repair panel welded on. The trouble with this is that the panels were not very good and had a thick layer of filler over them to cover it up, so I decided to get a new wing.
The complication here is that the fuel filler cap is in this wing and the company that produces this wing do not do the pressing for the fuel filler, but one of their suppliers could do the pressing, so I ordered an appropriate wing from them. Unfortunately it was not quite as I had hoped, the red one below is an original and the black a re-pro pressing.

I asked the company if they could do better and they said no, so the wing was exchanged at their cost for one without a filler hole and I set about moving a filler hole across. I started by marking up all the parts with masking tape to give me reference points of where the filler hole should be.

Then the filler panel was trimmed down and a hole cut in the new wing to allow me to drop the piece in before doing the final cut around, just in case I had it in the wrong place.

Once happy with this, the proper size hole was cut in the new wing before welding the hole in place.

It's going to need a bit more finishing and possibly a skim of filler before paint, but I'm fairly happy with the result and glad that I should have something that looks right when fitted.

GT6 Bulkhead reconstruction

A bit more fabricating and welding done this weekend. The vertical closer panel on the passenger side of the bulkhead was cut and folded.

The problem with this is that the new bottom corner of this panel reaches out over the floorpan. Having some spare floorpan parts, I decided to change the shape to make it all fit and look better.
Replacement section in place prior to cutting and welding.

Replacement piece welded in with the top hole filled in and the old corner of the floorpan cut out so not to create a redundant cavity.

And this is how it soon looked, with the bulkhead started to be welded in and some of the holes in the bulkhead being filled in. There is still quite a bit of grinding back to be done and pseudo spot welding between the bulkhead top and the vertical panels, then it's onto the drivers side, which will be more complicated again as the panels have to give room for the starter and clutch slave cylinder.

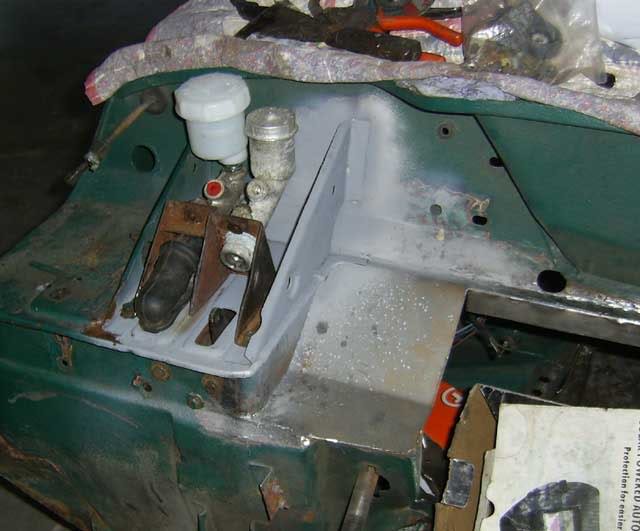

Later on, the top of the drivers side bulkhead finally buzzed in, which meant I could decide on the final position of the master cylinders, which have also been modified and welded together.

GT6 Bulkhead mods

With a few other jobs out of the way I've started back on the replacement GT6 body with a bit more choppy chop around the bulkhead.

As you can see from the pics below, I had already started on the drivers side before I remembered to take any pictures. The sides of the area around the pedal box have been boxed in and a new piece put in beside it to give more space for the air box.

As it was a few days ago

Remaining redundant top of bulkhead and front of tunnel cut off

New top of bulkhead positioned for the camera

While I am doing the welding around here I'll fill up the hole for the fuse box and all of the redundant holes also. At the same time I am thinking of re-positioning the wiper motor, as I have seen done before. This should make for a slightly less cluttered bulkhead and while I'm at it, I'll see if I can fit a more modern wiper motor, you know, one of those which actually go fast when you put it on the second speed, unlike some of the Triumph offerings.
